• 4-Wheel Antilock Brake Sys
• 5G Modem
• Forward Collision Warning
• Front Parking Sensors
• Keyless Entry W/Push Start
• Lane-Keeping System/Alert
• Post-Collision Braking
• Power Locks And Windows
• Pre-Collision Assist W/Aeb
• Rear Parking Sensors
• Rear View Camera
• Sync4 W/12" Screen

• 8" Cluster Display
• A/C Climate Control
• Accessory Turn-Off Delay
• Assist Handles - A-Pillar
• Center Console
• Dual Sunvisors
• Dual Usb
• Locking Glove Box
• Powerpoint - 12V (Front)
• Steering:Tilt/Telescope, Cruise & Audio Controls

• Advancetrac With Rsc
• Airbags - Safety Canopy
• Driver/Passenger Air Bags
• Perimeter Alarm
• Rear High Mount Stop Lamp
• Securilock Anti-Theft Sys
• Sos Post-Crash Alert Sys
• Tire Pressure Monit Sys

301A

Ford Co-Pilot360® Assist 2.0

Ford Security Package (1-year included)

Ford Security Package

Ford Co-Pilot360® (Cargo Van/Passenger Van)

Tow/Haul Mode with Trailer Wiring Provisions

• ORDER CODE 301A

• Vehicle
• Rear Door Type: Split Swing-Out
• Electrical
• Maximum Alternator Capacity (amps): 250
• Weight Information
• Base Curb Weight (lbs): 6023
• Gross Axle Wt Rating - Front (lbs): 4130
• Gross Axle Wt Rating - Rear (lbs): 5780
• Curb Weight - Front (lbs): 3213
• Curb Weight - Rear (lbs): 2810
• Gross Vehicle Weight Rating Cap (lbs): 9400
• Gross Combined Wt Rating (lbs): 10800
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 4200
• Dead Weight Hitch - Max Tongue Wt. (lbs): 420
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 4200
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 420
• Maximum Trailering Capacity (lbs): 4200
• Suspension
• Suspension Type - Front: Strut
• Suspension Type - Rear: Leaf
• Axle Type - Front: Independent
• Axle Type - Rear: Rigid Axle
• Axle Ratio (:1) - Front: 3.73
• Axle Ratio (:1) - Rear: 3.73
• Brakes
• Brake Type: 4-Wheel Disc
• Brake ABS System: 4-Wheel
• Brake ABS System (Second Line): 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 12.1
• Rear Brake Rotor Diam x Thickness (in): 12.1
• Tires
• Front Tire Size: LT235/65RR16
• Rear Tire Size: LT235/65RR16
• Revolutions/Mile @ 45 mph - Front: 720
• Revolutions/Mile @ 45 mph - Rear: 720
• Wheels
• Front Wheel Size (in): 16 X 6.5
• Rear Wheel Size (in): 16 X 6.5
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Steering
• Steering Type: Rack-Pinion
• Turning Diameter - Curb to Curb (ft): 47.8
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 25.1
• Doors
• Side Door Type: Sliding
• Exterior Dimensions
• Wheelbase (in): 148
• Length, Overall (in): 237.6
• Width, Max w/o mirrors (in): 81.3
• Height, Overall (in): 82.4
• Overhang, Front (in): 40.3
• Ground to Top of Load Floor (in): 28.8
• Ground Clearance, Front (in): 6
• Ground Clearance, Rear (in): 6
• Cargo Area Dimensions
• Cargo Area Length @ Floor to Seat 1 (in): 141.7
• Cargo Area Length @ Floor to Seat 2 (in): 107.1
• Cargo Area Length @ Floor to Seat 3 (in): 76.2
• Cargo Area Width @ Beltline (in): 69.8
• Cargo Box Width @ Wheelhousings (in): 53.7
• Cargo Box (Area) Height (in): 52.8
• Cargo Volume to Seat 1 (ft³): 256.4
• Cargo Volume to Seat 3 (ft³): 70.1
• Cargo Volume to Seat 4 (ft³): 70.1

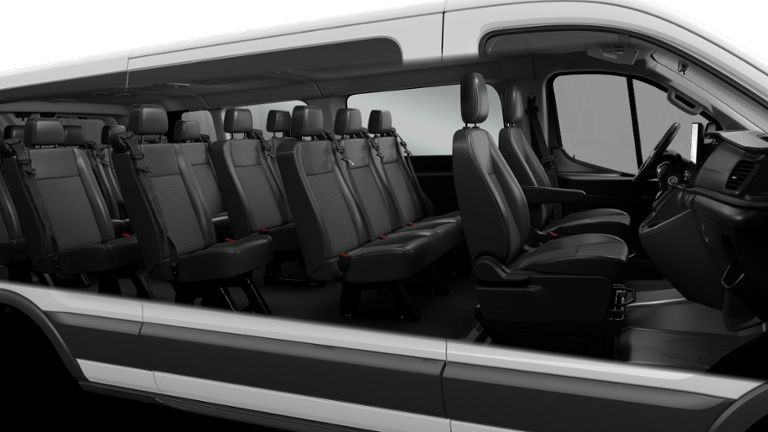

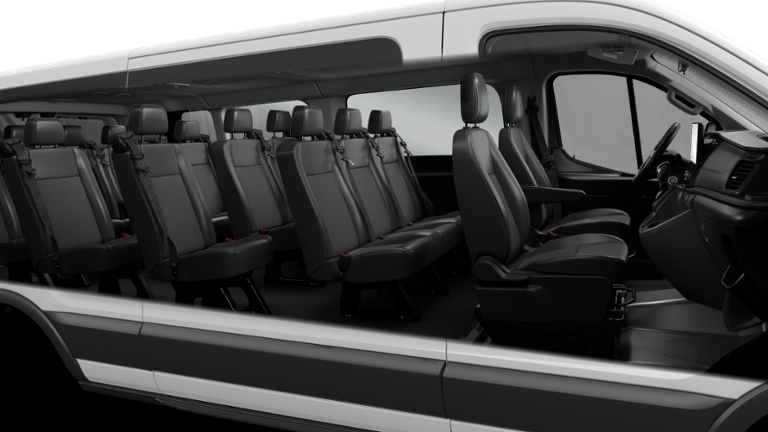

• Interior Dimensions
• Passenger Capacity: 12
• Front Head Room (in): 40.8
• Front Leg Room (in): 41.3
• Front Shoulder Room (in): 67.9
• Front Hip Room (in): 60.7
• Second Head Room (in): 41.1
• Second Leg Room (in): 33.7
• Second Shoulder Room (in): 71.4
• Second Hip Room (in): 69.6
• Third Head Room (in): 40.6
• Third Leg Room (in): 35.6
• Third Shoulder Room (in): 67
• Third Hip Room (in): 67.3
• Summary

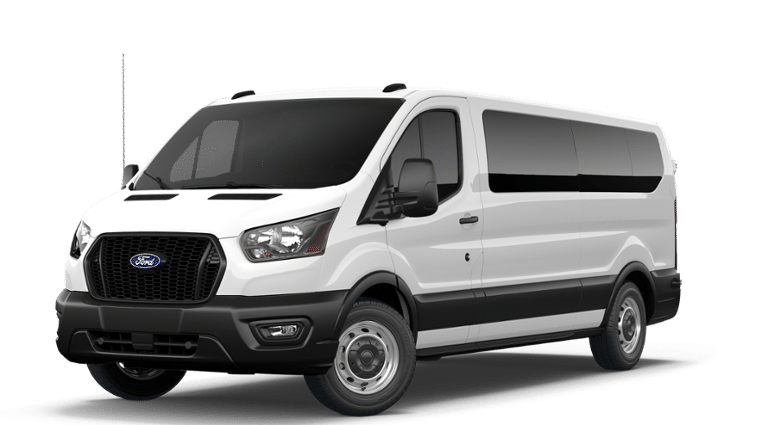

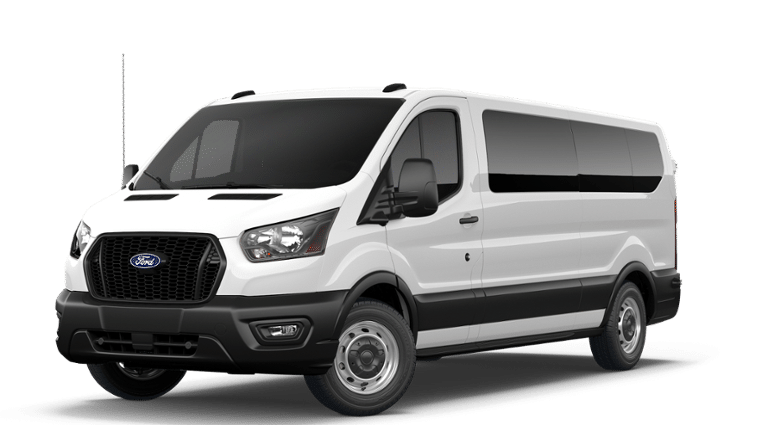

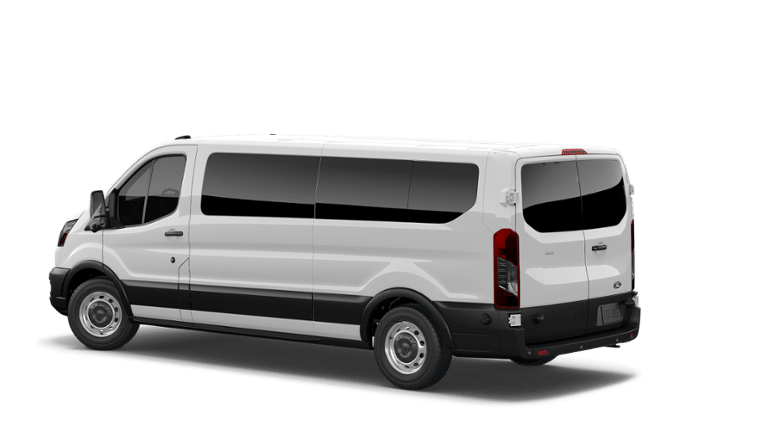

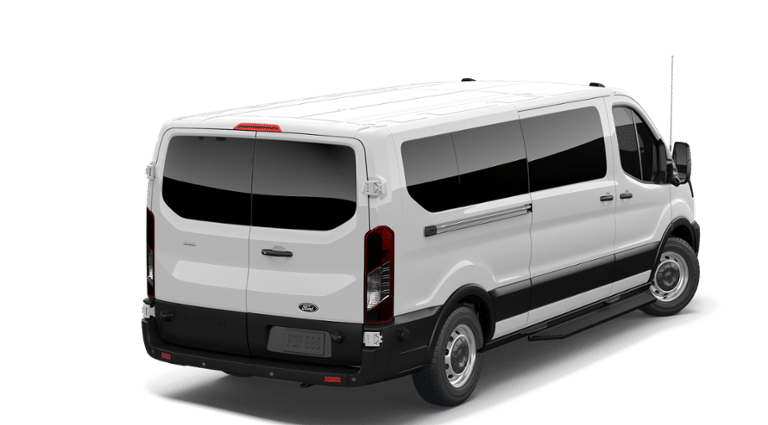

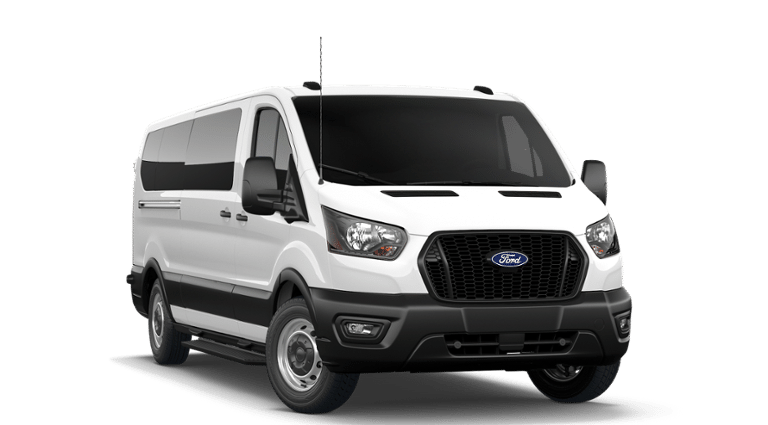

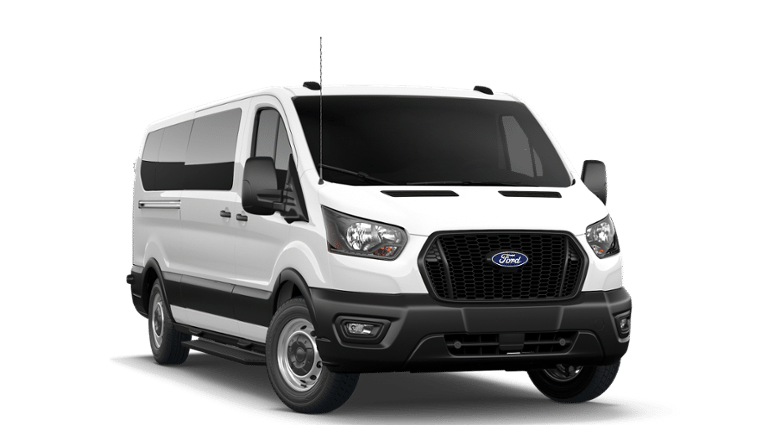

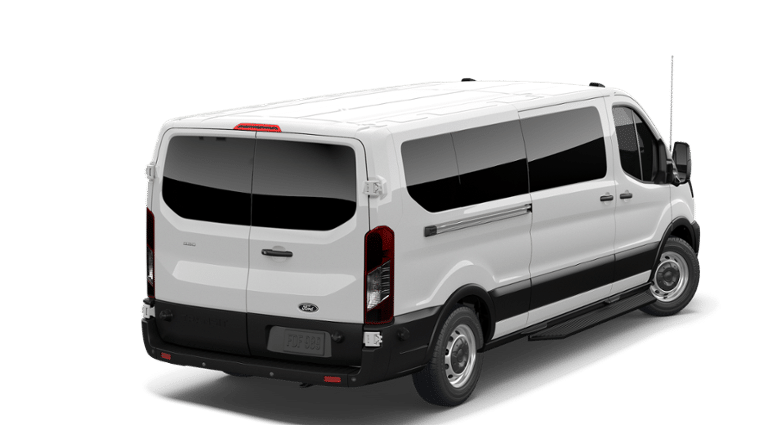

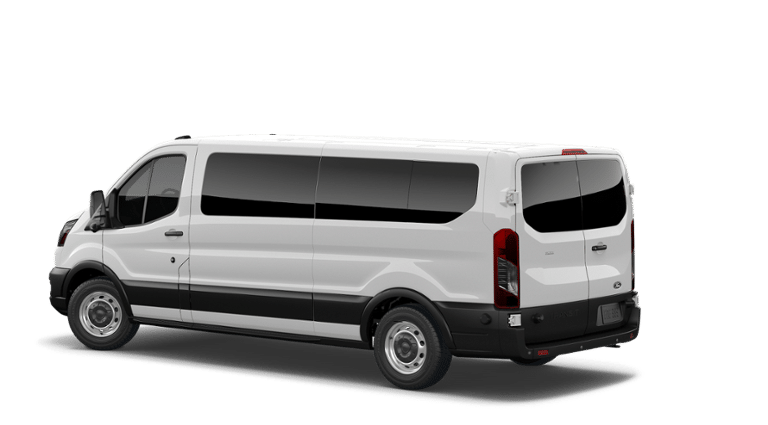

• Vehicle Name: Ford Transit Passenger Wagon
• Body Style: Low Roof Van
• Body Code: V
